Wiper Motor Assembly Note

  1. Connect the wiper motor to the vehicle wiring harness connector, operate the wipers, and then stop them at the auto-stop position.
  2. Adjust the motor crank, wiper link No. 1, and wiper link No. 2 so that they are parallel as shown in the illustration.
  3. Assemble the wiper motor.

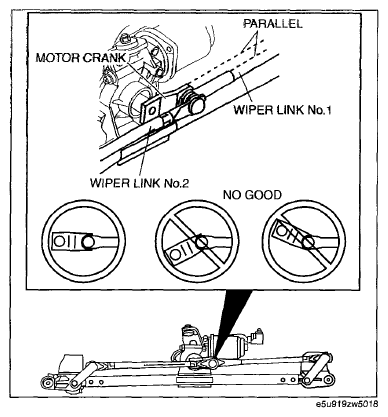

    Fig 1: Wiper Motor Assembly
    G06149087Courtesy of MAZDA MOTORS CORP.
