Center Panel Unit Disassembly/Assembly: Notes

CAUTION:
  • Before disassembling the center panel unit, spread a cloth on the floor to put the disassembled parts on. This protects the surface of the panel from scratches or dirt.
  1. Disassemble in the order indicated in the illustration.
  2. Assemble in the reverse order of disassembly.

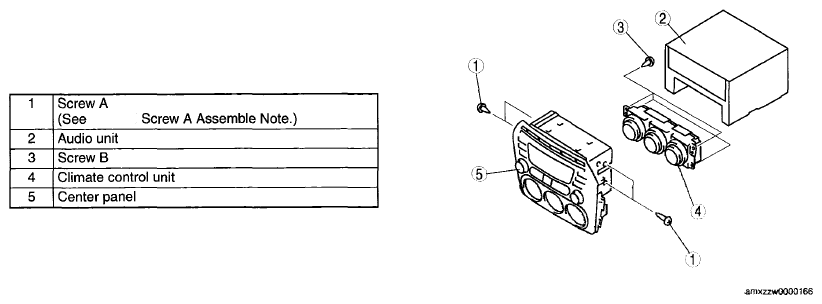

Fig 1: Center Panel Unit Components
G06149099Courtesy of MAZDA MOTORS CORP.
