Input/Turbine Speed Sensor
Courtesy of MAZDA MOTORS CORP.

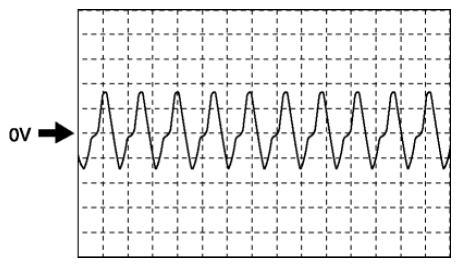

- Terminal:
AB (+)-Y (-)
- Oscilloscope setting:
1 V/DIV (Y), 2 ms/DIV (X), DC range
- Measurement condition:
Idling in P position after warming up
