Manual Transaxle Location Index

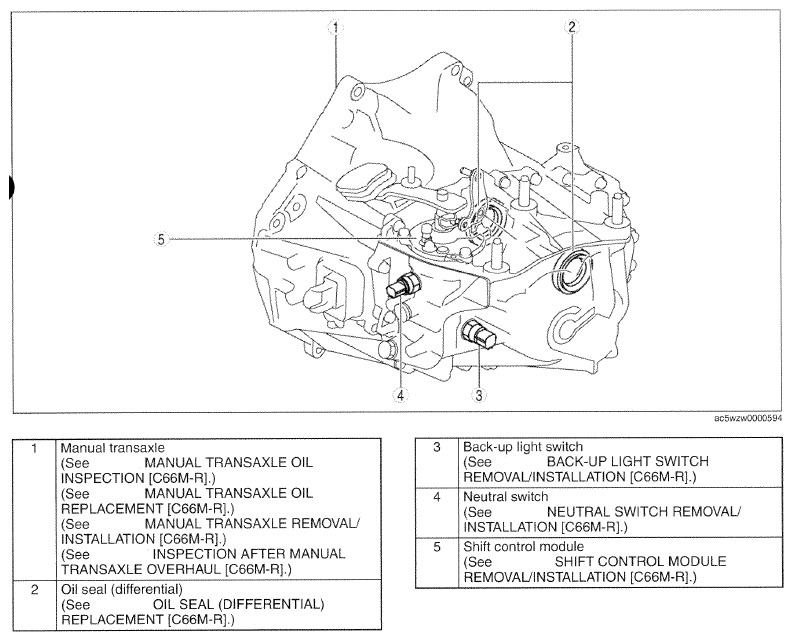

Fig 1: Identifying Manual Transaxle, Oil Seal, Back Up Light, Neutral Switch And Shift Control Module
G09771161Courtesy of MAZDA MOTORS CORP.
