Passenger-Side Curtain Air Bag Module Connector End View

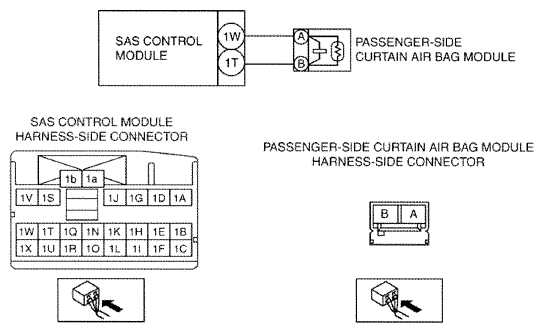

Fig 1: Passenger-Side Curtain Air Bag Module Connector End View
G09771446Courtesy of MAZDA MOTORS CORP.

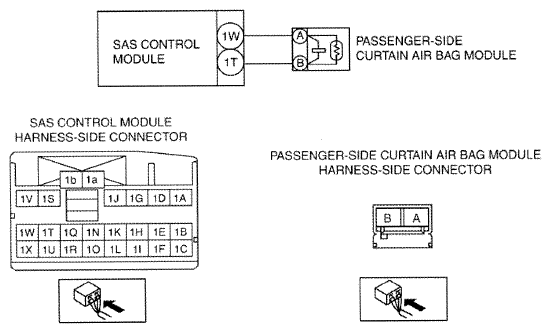

Fig 1: Passenger-Side Curtain Air Bag Module Connector End View
G09783473Courtesy of MAZDA MOTORS CORP.
