Passenger-Side Air Bag Module Connector End View

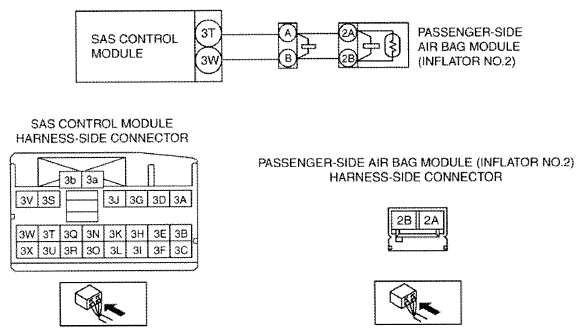

Fig 1: Passenger-Side Air Bag Module Connector End View
G09783459Courtesy of MAZDA MOTORS CORP.

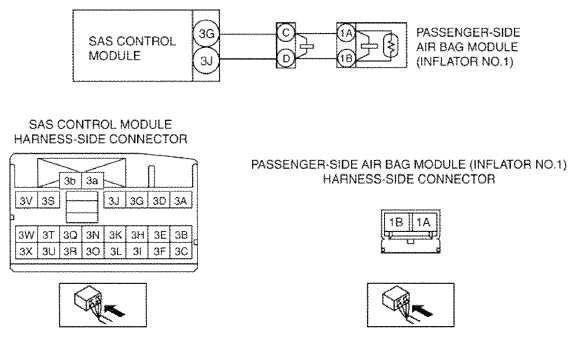

Fig 1: Passenger-Side Air Bag Module Connector End View
G09783458Courtesy of MAZDA MOTORS CORP.

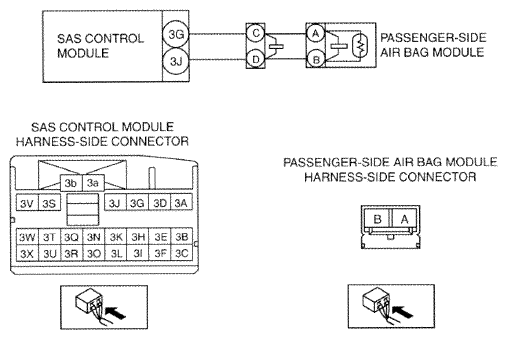

Fig 1: Passenger-Side Air Bag Module Connector End View
G09771438Courtesy of MAZDA MOTORS CORP.
