Commander Switch Drops Into Center Console (09-009/14)
WARNING: This page is about the 3 Grand Touring, 4D Hatchback, 2.0L Eng VIN 7, Automatic Trans, which is a different variant/trim than selected.
Publication date: 2014-01-28Reference number: 09-009/14
COMMANDER SWITCH DROPS INTO CENTER CONSOLE
TECHNICAL SERVICE BULLETIN
Reference Number(s): 09-009/14, Date of Issue:
01/28/2014
| MAZDA: | 2014 Mazda3 |
| SECTION: | Body And Accessories |
APPLICABLE MODEL(S)/VINS
2014 Mazda3 with VINs lower than JM1BM******142131 (produced before November 6, 2013)
DESCRIPTION
Some vehicles may experience a condition where the commander switch drops down from the panel.
>VEHICLE INFORMATION
| Rear side drops down | Front side drops down |
|---|---|

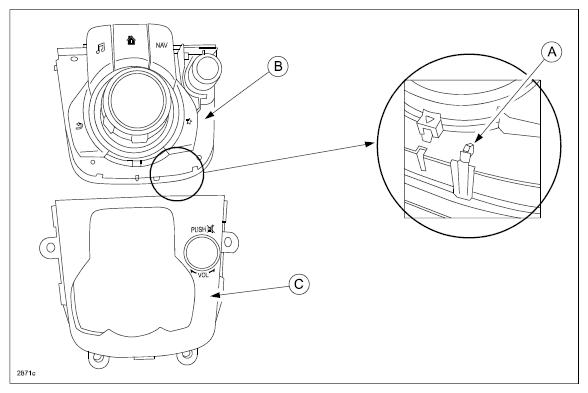

Damage to the hook(s) (A) securing the commander switch (B) to the frame (C) is caused by an excessive vertical force. To correct the problem, pieces of non-woven fabric have been added to the commander switch to increase the load capacity.
Customers having this concern should have their vehicle repaired using the following repair procedure.
REPAIR PROCEDURE
- Verify customer concern.
- Replace the commander switch with a modified one according to the instructions on MS3 online or the Workshop Manual (section 09-20 COMMANDER SWITCH REMOVAL/INSTALLATION).
- Verify repair.
PART(S) INFORMATION
>PART(S) INFORMATION
| Part Number | Description | Qty. |
|---|---|---|
| BHN1-66-CM0C | Commander Switch | 1 |
WARRANTY INFORMATION
NOTE:
- This warranty information applies only to verified customer complaints on vehicles eligible for warranty repair.
- This repair will be covered under Mazda's New Vehicle Limited Warranty term.
- Additional diagnostic time cannot be claimed for this repair.
>WARRANTY INFORMATION
| Warranty Type | A |
| Symptom Code | 89 |
| Damage Code | 9A |
| Part Number Main Cause | ****-66-CM0* |
| Quantity | 1 |
| Operation Number/Labor Hours: | XXK22ARX/0.2 Hrs. |
