Transaxle mounting bolt removal note

WARNING: This page is about a different variant/trim than selected.

WARNING:

Remove the MTX carefully, holding it steady. If the MTX falls it could be damaged or cause injury.

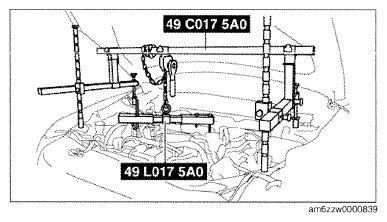

Adjust the SST and lean the engine toward the MTX.

Fig 1: Lifting Engine Using SST
Courtesy of MAZDA MOTORS CORP.

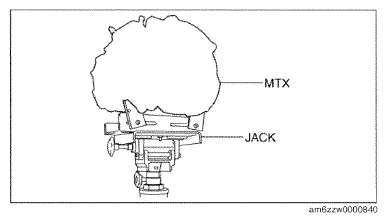

Support the MTX on a jack.

Fig 2: Supporting Manual Transaxle Using Jack
Courtesy of MAZDA MOTORS CORP.

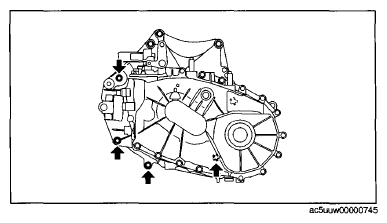

Remove the transaxle mounting bolts (lower side).
Remove the MTX.

Fig 3: Locating Transaxle Mounting Bolts (Lower Side)
Courtesy of MAZDA MOTORS CORP.
