Steering Gear And Linkage Assembly: Notes

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

To prevent damage to the steering gear, secure it to the vise using a copper plate or clean cloth.

Assemble in the order shown in the figure.

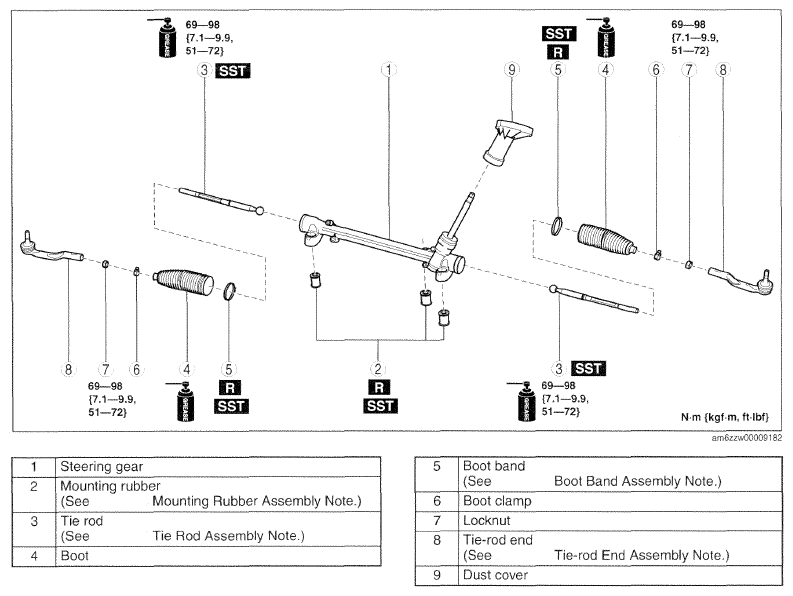

Fig 1: Exploded View Of Steering Gear And Linkage With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
