Wiper/Washer System Location Index

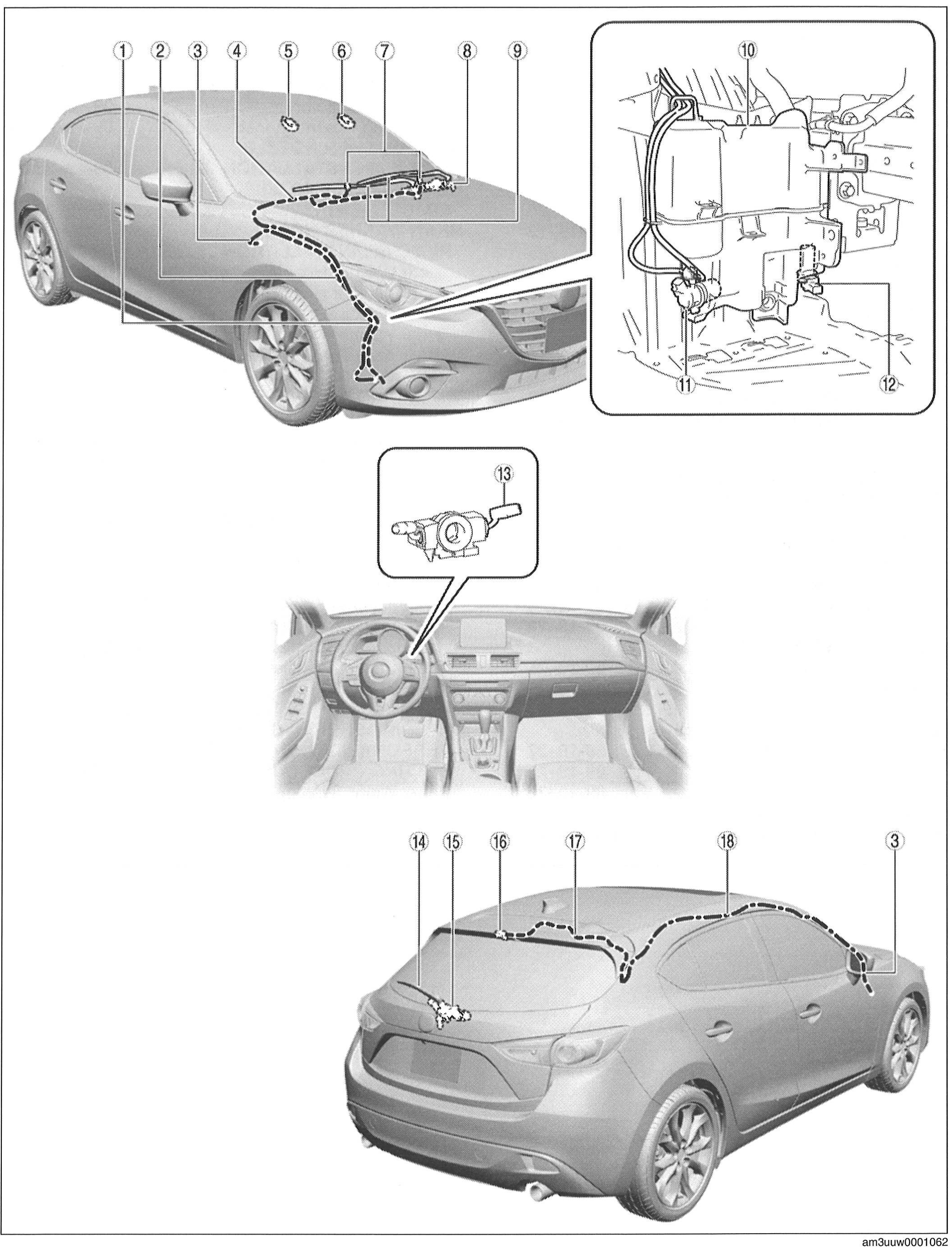

Fig 1: Wiper/Washer System Components Location (1 Of 2)
G09784055Courtesy of MAZDA MOTORS CORP.

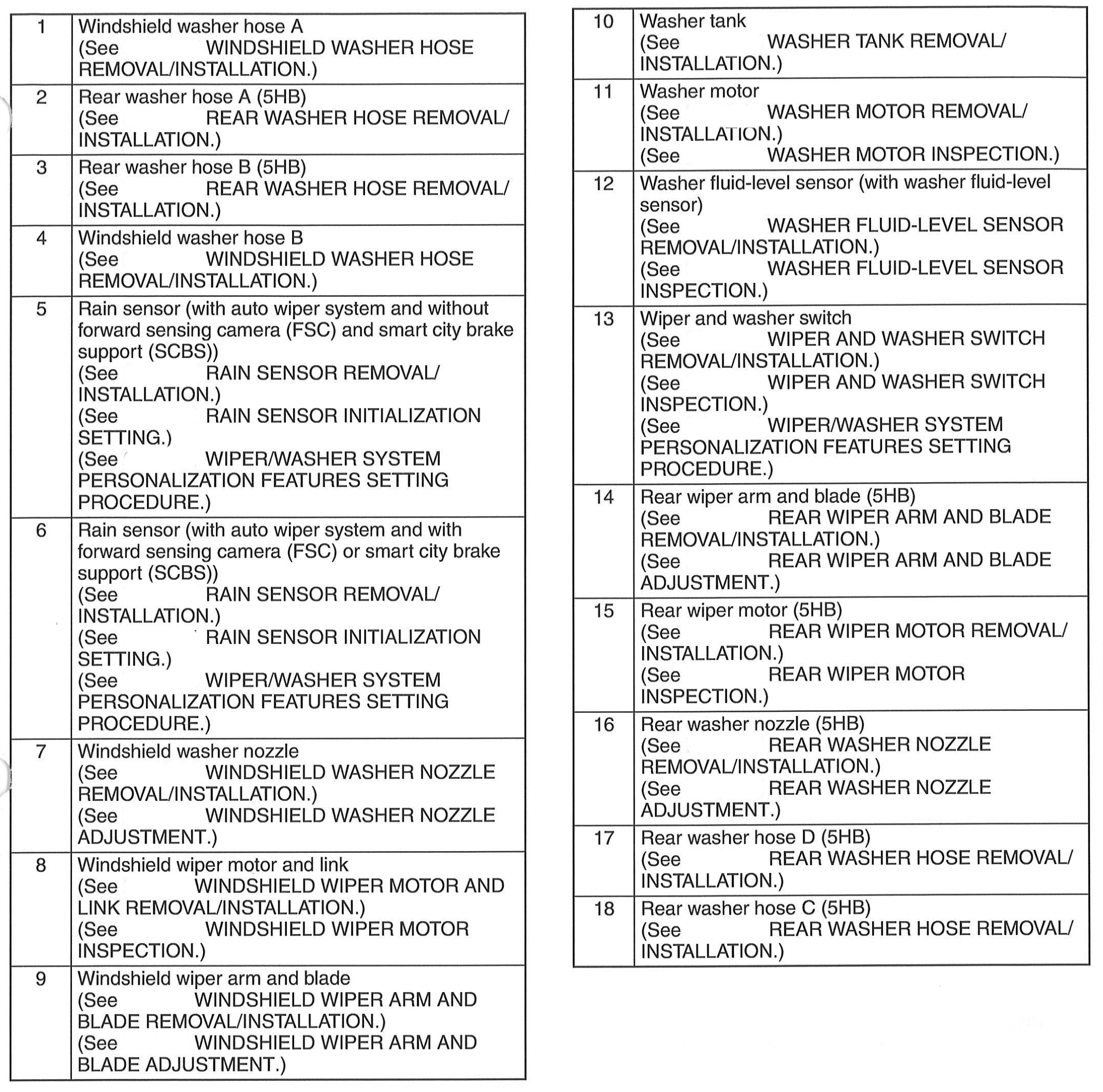

Fig 2: Legend For Wiper/Washer System Components Location (2 Of 2)
G00539931Courtesy of MAZDA MOTORS CORP.
