Ball Joint Assembly Note

  1. When assembling the ball joint, use a clean rag to protect the links, and squeeze using a pair of protective tape-wrapped pliers.

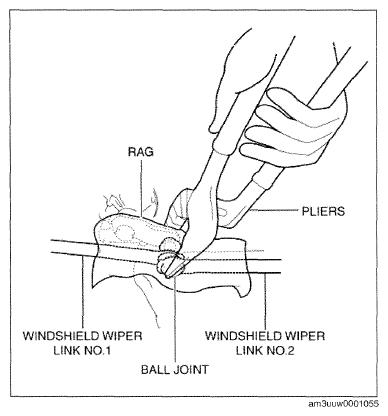

    Fig 1: Protecting Links Using Clean Rag
    G09784074Courtesy of MAZDA MOTORS CORP.
