Discharge Headlight Control Module Removal/Installation

WARNING:
  • Incorrect servicing of the discharge headlights could result in electrical shock. Before servicing the discharge headlights, always refer to the discharge headlight service warnings. (See DISCHARGE HEADLIGHT SERVICE WARNINGS )
  1. Remove the battery cable.
  2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] )
  3. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION )
  4. Remove the front combination light. (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION )
  5. Remove screws.
  6. Disconnect the discharge headlight control module connector. (See DISCHARGE HEADLIGHT CONTROL MODULE REMOVAL/INSTALLATION  note)
  7. Remove the discharge headlight control module.
  8. Install in the reverse order of removal.

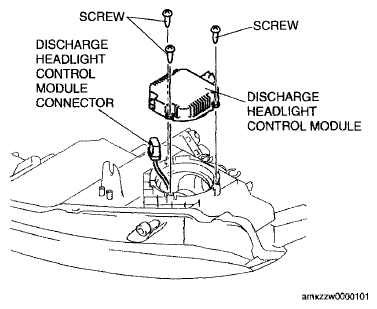

Fig 1: Discharge Headlight Control Module And Screws
G06149802Courtesy of MAZDA MOTORS CORP.

Discharge headlight control module connector removal note

  1. Remove the screw shown in the illustration.
  2. Disconnect the discharge headlight control module connector.
Fig 2: Discharge Headlight Control Module Connector
G06149803Courtesy of MAZDA MOTORS CORP.
