Steering Switch Connector End View (Without Bluetooth System)

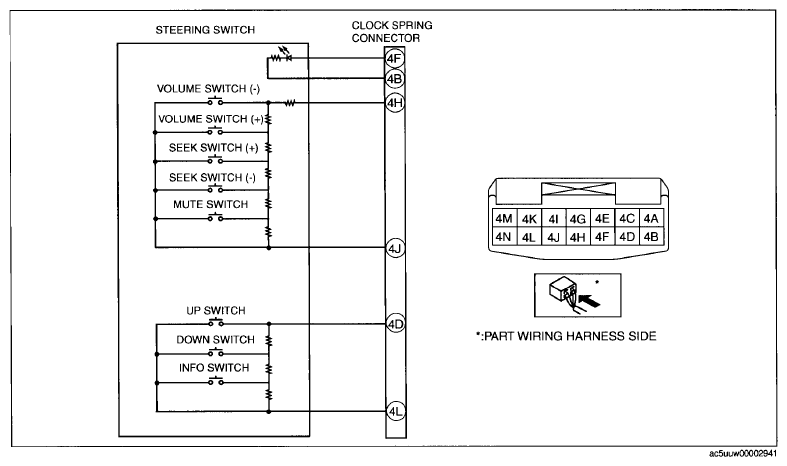

Fig 1: Steering Switch Connector End View (Without Bluetooth System)
G09077732Courtesy of MAZDA MOTORS CORP.
