No.7 Engine Oil Pressure Warning Light Illuminates: Notes
DESCRIPTION & POSSIBLE CAUSE
| 7 |
ENGINE OIL PRESSURE WARNING LIGHT ILLUMINATES |
| DESCRIPTION |
- Engine oil pressure warning light illuminates incorrectly.
|
| POSSIBLE CAUSE |
- Improper engine oil level
- Engine oil leakage
- Oil pressure switch connector or terminals malfunction

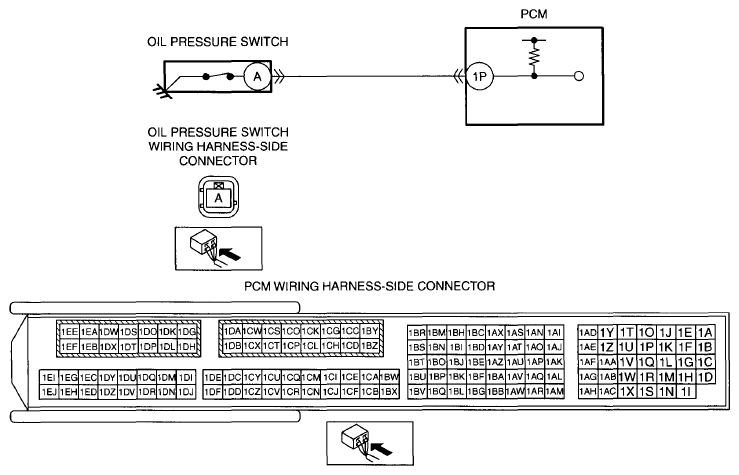

- Short to ground in wiring harness between oil pressure switch terminal A and PCM terminal 1P
- PCM connector or terminals malfunction
- Oil pressure switch malfunction
- Oil pump malfunction
- Instrument cluster malfunction
- PCM malfunction
|
|
|
