Intake Manifold Removal Note

Remove the MAP sensor/IAT sensor No.2. (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO.2 REMOVAL/INSTALLATION ).
Disconnect the harness clip from the intake manifold as shown in the figure.

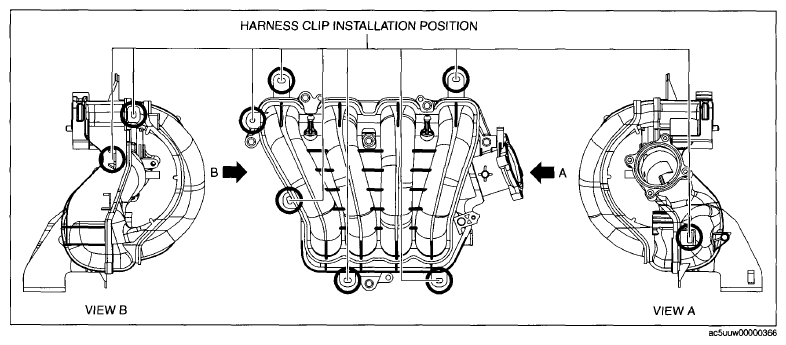

Fig 1: Identifying Harness Clip Installation Position
Remove the intake manifold.
