Ignition Coil/Ion Sensor Removal/Installation

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0] ).
Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION ).
Remove in the order indicated in the table.
Install in the reverse order of removal.

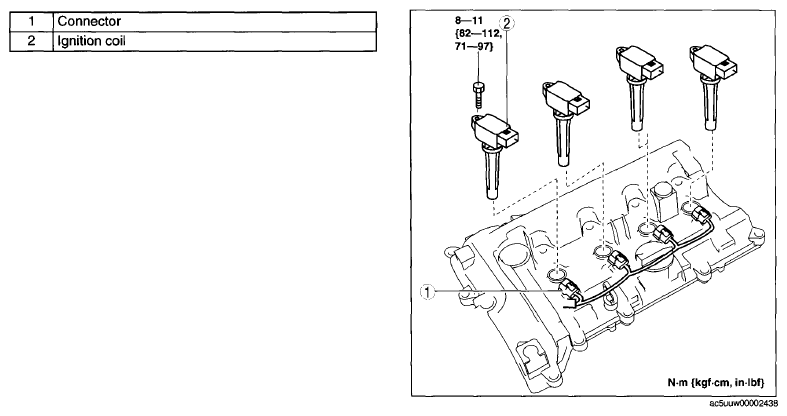

Fig 1: Ignition Coil And Connector With Torque Specification
