U.S.A. And CANADA: Notes

Level the vehicle.
Complete the "BEFORE SERVICE PRECAUTION". (See BEFORE SERVICE PRECAUTION ).
Drain the fuel. (See FUEL DRAINING PROCEDURE ).
Open the fuel-filler lid.
Remove in the order indicated in the table.

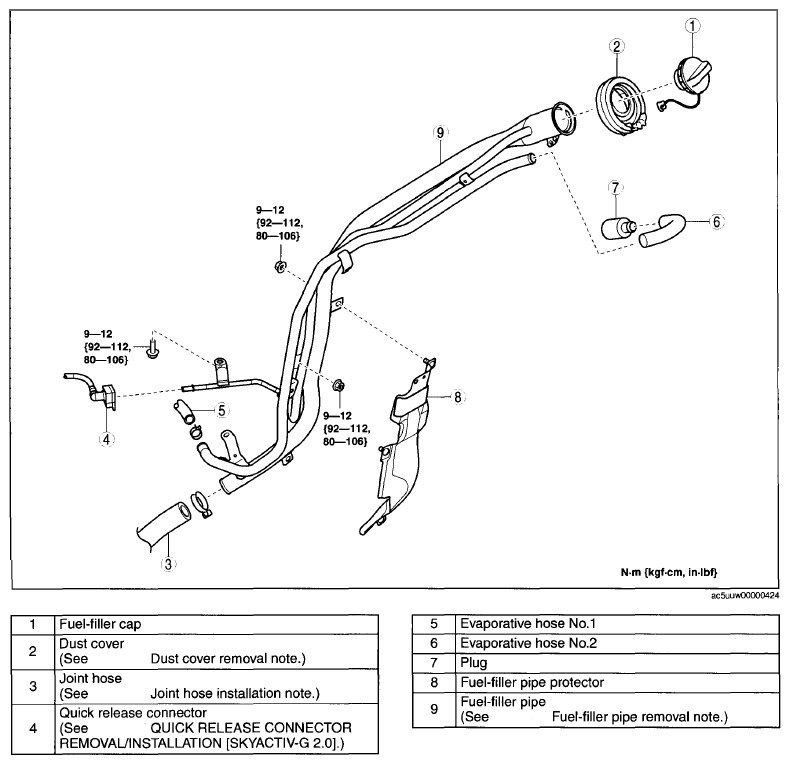

Fig 1: Exploded View Of Fuel Filler Pipe With Torque Specifications (U.S.A. And Canada)
Install in the reverse order of removal.
Complete the "AFTER SERVICE PRECAUTION". (See AFTER SERVICE PRECAUTION ).
