Exhaust System Removal/Installation: 2WD: Notes

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0] .)
  2. Remove in the order indicated in the table.
  3. Remove the insulator. (See EXHAUST SYSTEM INSULATOR REMOVAL/INSTALLATION .)
  4. Install in the reverse order of removal.

Step 1

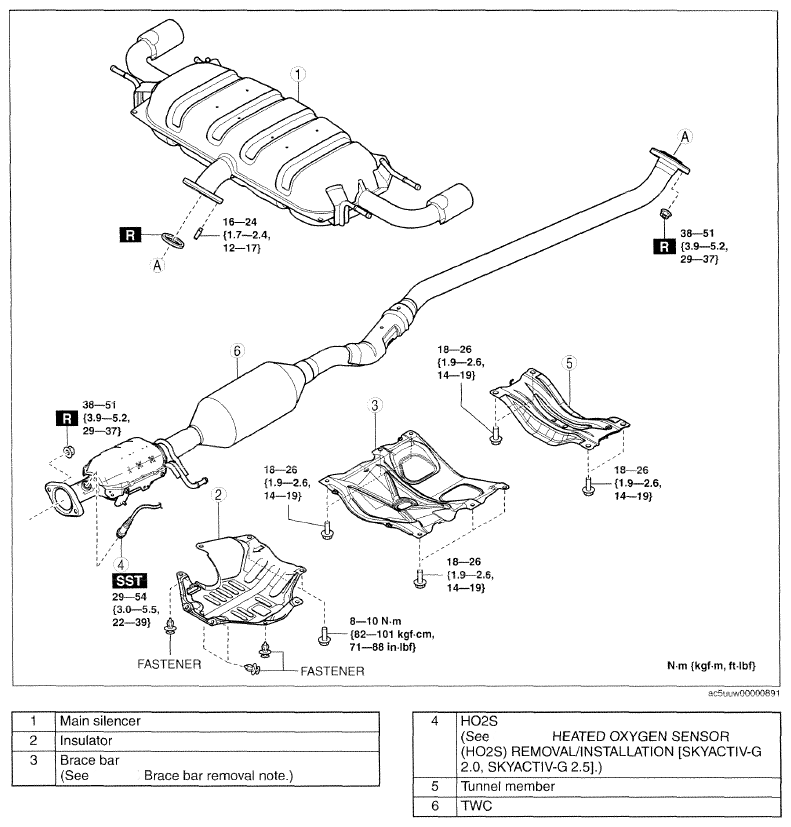

Fig 1: Exploded View Of Exhaust System - 2WD (Step 1) With Torque Specifications
G09758541

Step 2

Fig 2: Exploded View Of Exhaust System - 2WD (Step 2) With Torque Specifications
G09758542
