Starting System Location Index

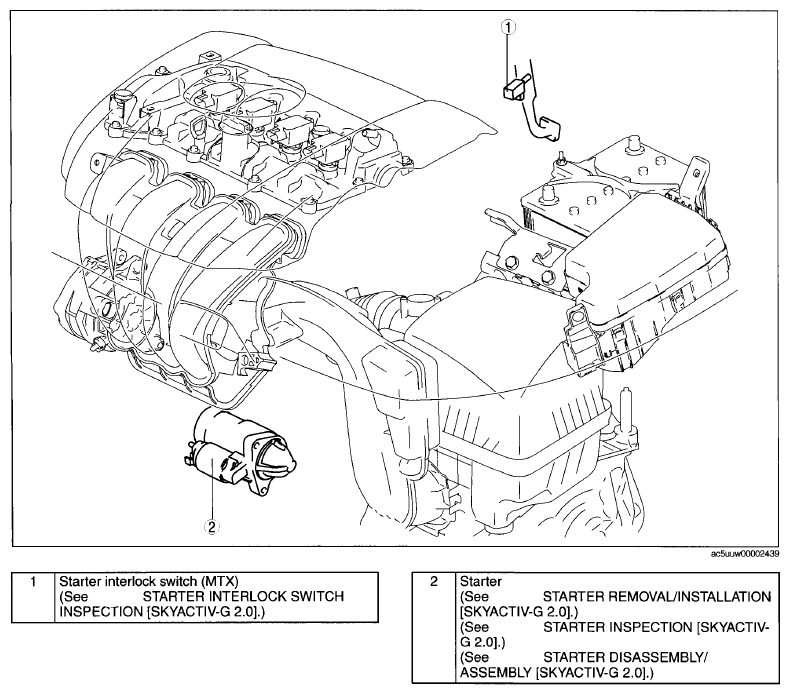

Fig 1: Identifying Starter Interlock Switch (MTX) And Starter
G09074509
