Power Outer Mirror Removal/Installation
- Disconnect the negative battery cable. (See
NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0]
).
- Remove the inner garnish. (See
INNER GARNISH REMOVAL/INSTALLATION
).
- Remove the front door trim. (See
FRONT DOOR TRIM REMOVAL/INSTALLATION
).

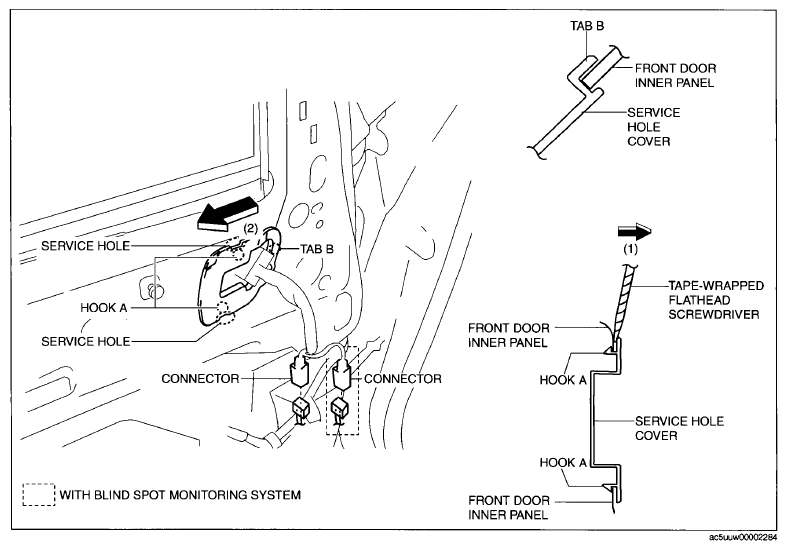

- Insert a tape-wrapped flathead screwdriver into the service hole and remove hooks A in the direction of arrow (1).
- Slide the service hole cover in the direction of the arrow (2) shown in the figure and remove tab B.
- Disconnect the connector.
- Remove nuts C.

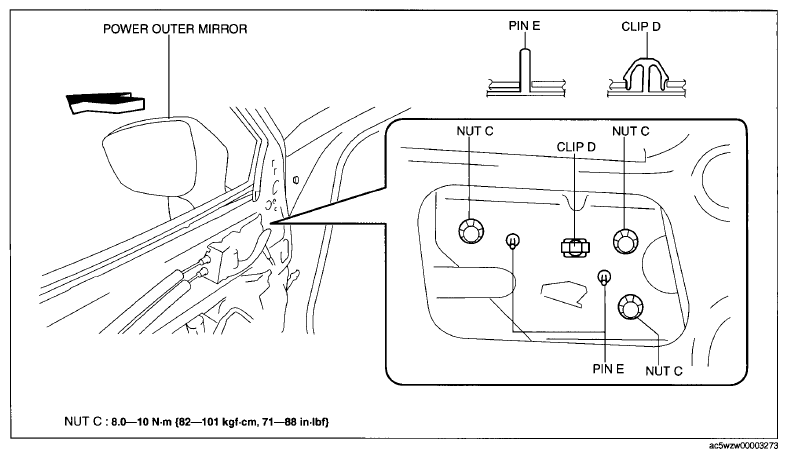

- Pull the power outer mirror in the direction of the arrow while remove clips D, pin E.
CAUTION:
- If the clip D of the power outer mirror is detached, the power outer mirror may fall off and be damaged. When detaching clip D of the power outer mirror, hold the power outer mirror by hand during the servicing.
- Install in the reverse order of removal.
