Push Button Start Inspection

  1. Remove the push button start. (See PUSH BUTTON START REMOVAL/INSTALLATION ).
  2. Verify that the continuity between the push button start terminals is as indicated in the table.
    Fig 1: Push Button Start Terminals Continuity Reference Chart
    G09077804Courtesy of MAZDA MOTORS CORP.
    Fig 2: Push Button Start - Circuit Diagram
    G09077805Courtesy of MAZDA MOTORS CORP.
    • If the continuity can be verified as indicated in the table, go to the next step.
    • If not as indicated in the table, replace the push button start. (See PUSH BUTTON START REMOVAL/INSTALLATION ).
  3. Apply battery positive voltage and connect the ground to the push button start terminals and verify that the LED illuminates as indicated in the table.

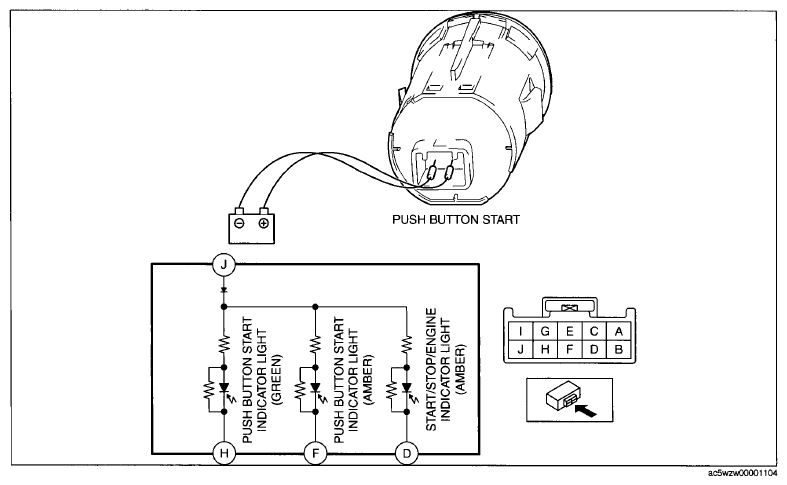

    Fig 3: Checking LED
    G09077806Courtesy of MAZDA MOTORS CORP.
    • If the LED does not illuminate as indicated in the table, replace the push button start. (See PUSH BUTTON START REMOVAL/INSTALLATION ).
      Fig 4: Identifying Push Button Start, Start/Stop/Engine Indicator Light
      G09077807Courtesy of MAZDA MOTORS CORP.
