Steering Angle Sensor: Testing and Inspection

STEERING ANGLE SENSOR INSPECTION

1. Remove the column cover. Service and Repair

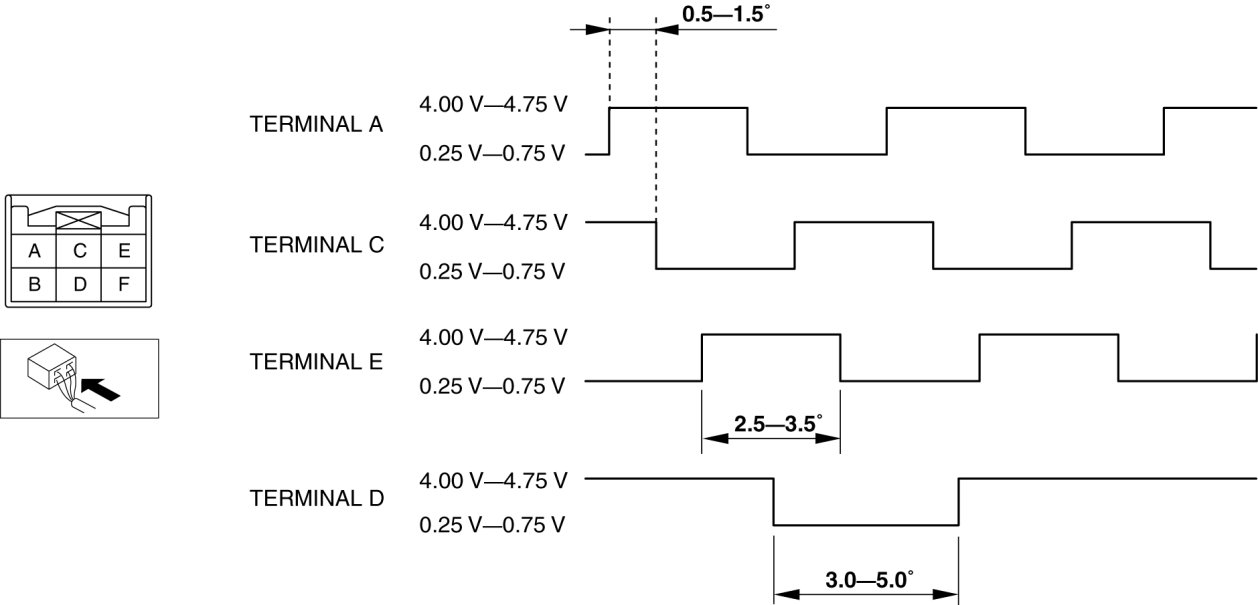

2. Turn the steering wheel to the right and left, and verify that the voltage and pulses at the terminals are as shown in the figure.

- If not as indicated in the table, replace the combination switch body.
