Air Duct: Service and Repair

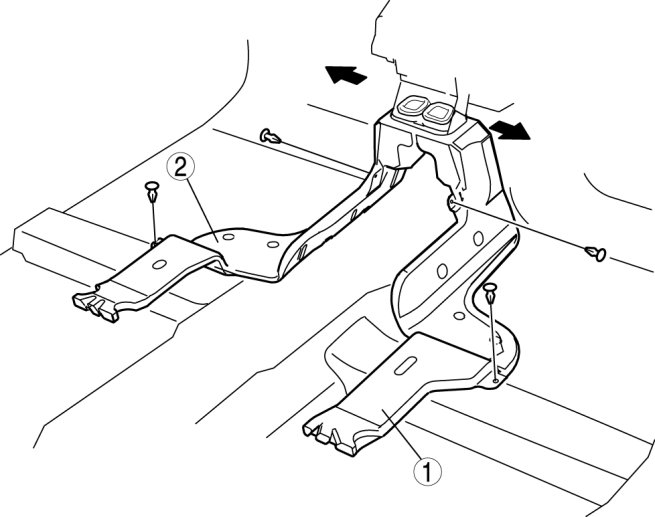

REAR HEAT DUCT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Front seat Front Seat Removal/Installation

b. Car-navigation unit (With car-navigation system) Service and Repair

c. Front scuff plate inner Front Scuff Plate Removal/Installation

d. Front side trim Front Side Trim Removal/Installation

e. Console panel Console Panel Removal/Installation

f. Console Console Removal/Installation

3. Turn over the floor covering. Service and Repair

4. Remove in the order indicated in the table.










5. Install in the reverse order of removal.
