Seat Temperature Switch: Service and Repair

SEAT WARMER SWITCH REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the panel. (See Console Removal/Installation)

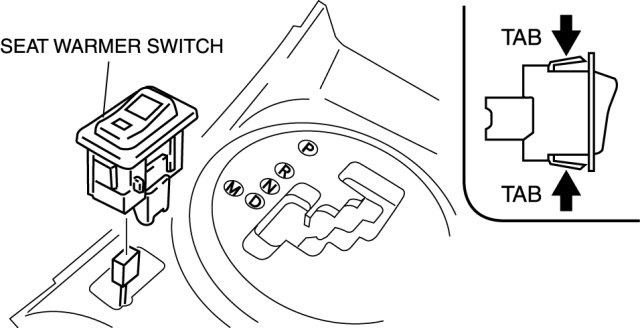

3. Squeeze the tabs of seat warmer switch and pull it outward to remove it.

4. Install in the reverse order of removal.
