Vehicles With DRL

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

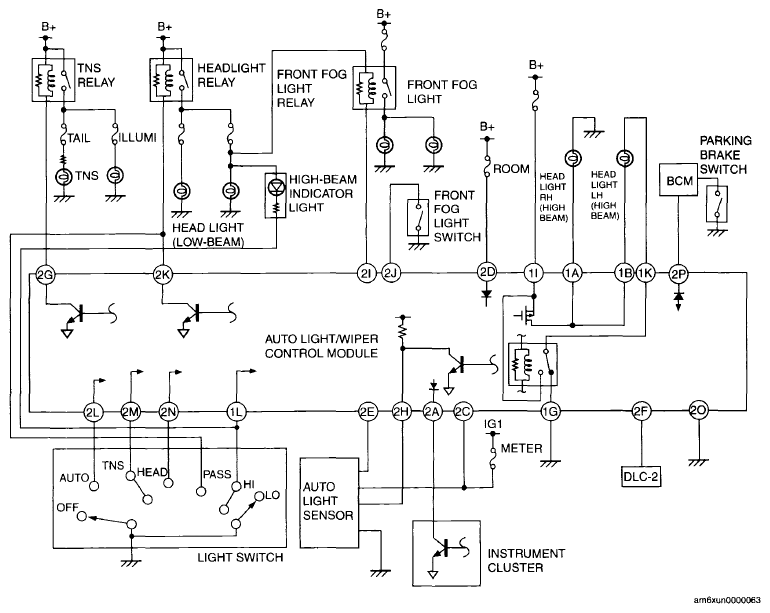

Fig 1: On-Board Diagnostic Wiring Diagram - Vehicles With DRL
G06200602Courtesy of MAZDA MOTORS CORP.
