Wheel Hub, Steering Knuckle Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble in the order indicated in the table.

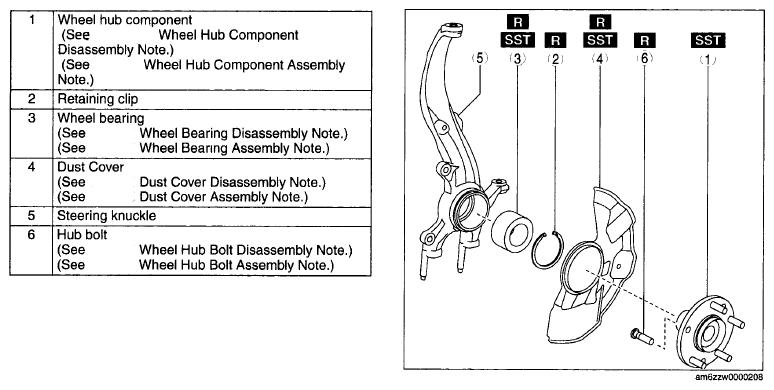

    Fig 1: Identifying Wheel Hub, Steering Knuckle Disassembly Order
    G06205439Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
