Front Shock Absorber And Coil Spring Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front shock absorber and coil spring. See FRONT SHOCK ABSORBER AND COIL SPRING REMOVAL/INSTALLATION .
Disassemble in the order indicated in the table.
Assemble in the reverse order of removal.
Inspect the wheel alignment and adjust it if necessary. See FRONT WHEEL ALIGNMENT .

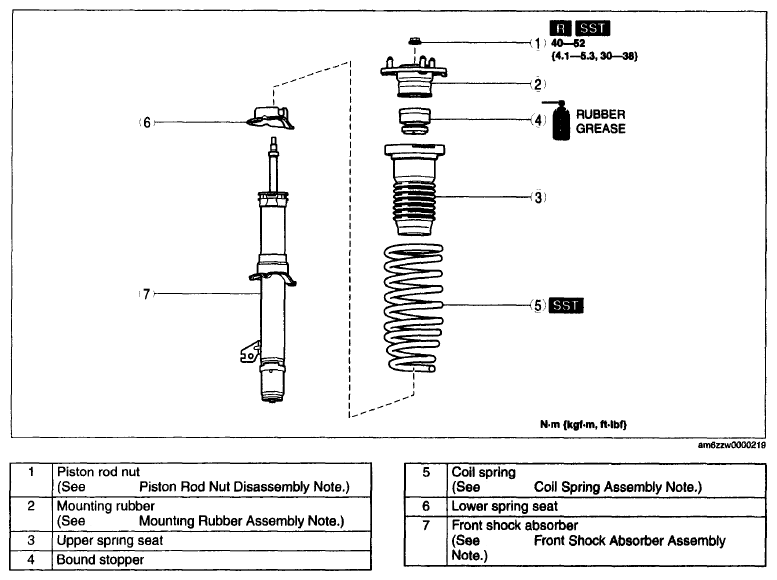

Fig 1: Front Shock Absorber And Coil Spring Disassembly/Reassembly Order With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
