Inboard Light Bulb Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Partially peel back the trunk rid trim. (See TRUNK LID TRIM REMOVAL/INSTALLATION .)
  3. Disconnect the back-up light bulb connector.
    Fig 1: Identifying Back-Up Light Bulb Connector
    G06201068Courtesy of MAZDA MOTORS CORP.
  4. Rotate the socket in the direction of the arrow as shown in the figure to remove it.

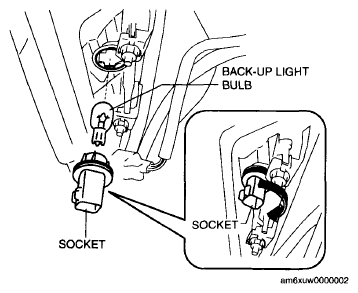

    5. Fig 2: Removing Back-Up Light Bulb
    G06201069Courtesy of MAZDA MOTORS CORP.
  5. Remove the back-up light bulb.
  6. Install in the reverse order of removal.
