Assist Handle Removal/Installation: Installation

  1. Insert the assist handle in the assist handle bracket.
  2. Push the assist handle cover in the direction of the arrow shown in the figure to install the assist handle.

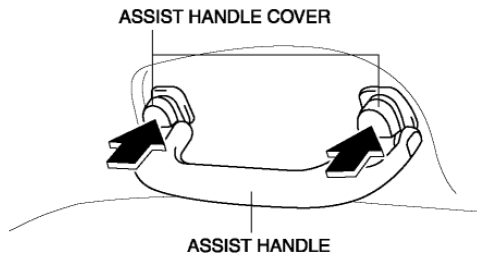

    Fig 1: Pushing Assist Handle Cover
    G08144777
