SIRIUS Satellite Radio Unit Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.

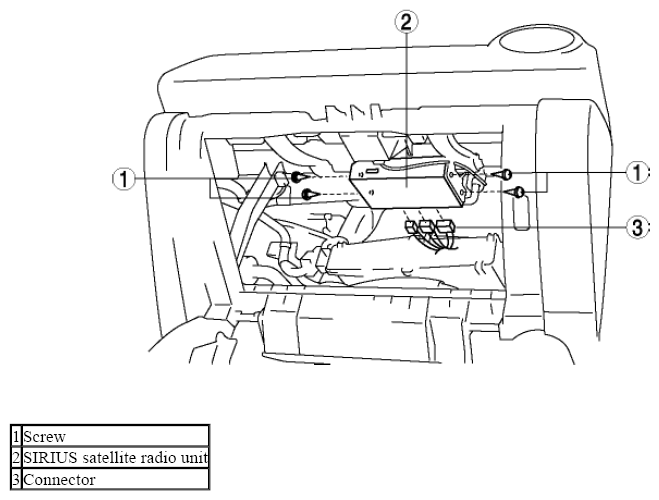

    Fig 1: Identifying SIRIUS Satellite Radio Unit, Connector And Screws
    G08144980
  4. Install in the reverse order of removal.
