Bluetooth UNIT REMOVAL/INSTALLATION

Disconnect the negative battery cable.
Remove the following parts:
1. Front scuff plate (RH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
2. Front side trim (RH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
3. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
4. Audio amplifier (With Bose®) (See AUDIO AMPLIFIER REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.

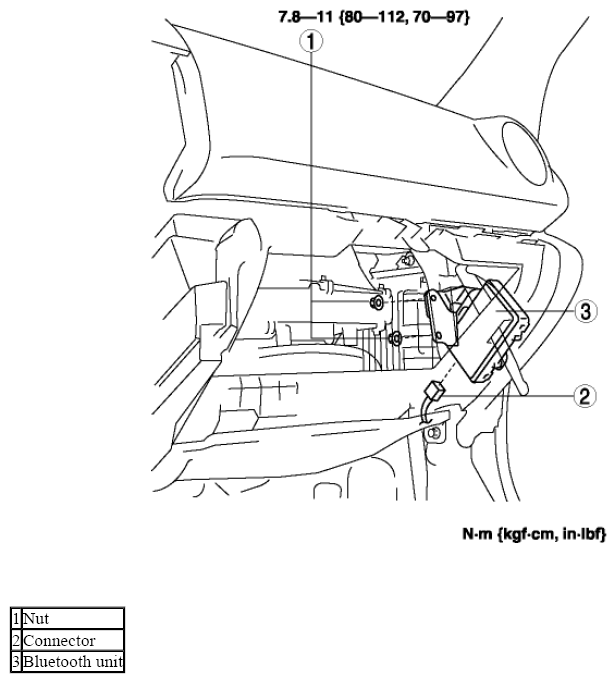

Fig 1: Bluetooth Unit, Connector And Nut With Torque Specification
Install in the reverse order of removal.
