Accessory Socket Inspection: Front

  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
    2. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    3. Shift knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    4. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    5. Center panel lower (See CENTER PANEL LOWER REMOVAL/INSTALLATION .)
  3. Connect a tester as shown in the figure and verify that there is continuity.

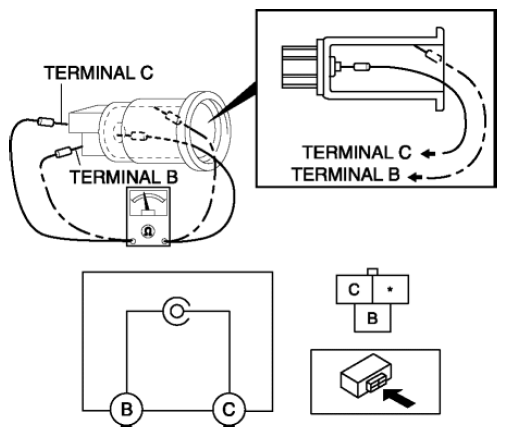

    Fig 1: Identifying Accessory Socket (Front) Connector Terminals
    G08145020
    • If the continuity cannot be verified, replace the accessory socket (Front).
