MZR 2.5

DETECTION CONDITION  Brake switch and brake switch2 link malfunction
POSSIBLE CAUSE
  • Connector or terminal malfunction
  • Short to ground in wiring harness between brake switch terminal A and keyless control module terminal 3E
  • Short to ground in wiring harness between brake switch terminal B and battery positive terminal
  • Short to power supply in wiring harness between brake switch terminal D and keyless control module terminal 3S
  • Open circuit in wiring harness between brake switch terminal A and keyless control module terminal 3E
  • Open circuit in wiring harness between brake switch terminal B and battery positive terminal
  • Open circuit in wiring harness between brake switch terminal C and body ground
  • Open circuit in wiring harness between brake switch terminal D and keyless control module terminal 3S
  • Brake switch malfunction
  • Keyless control module malfunction

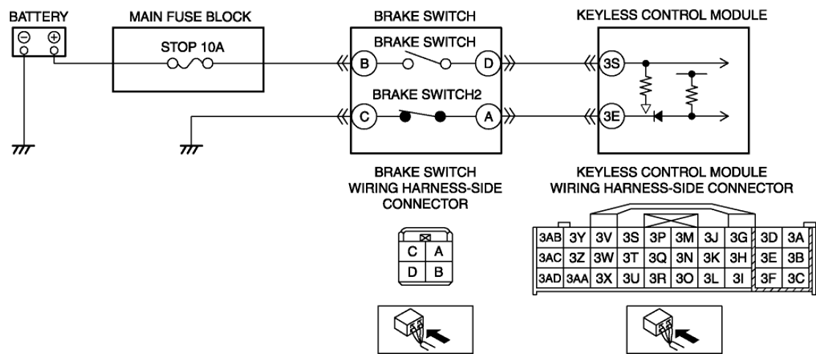

G08143933
