Tie-Rod End Disassembly Note

  1. Place alignment marks as shown in the figure for proper installation.

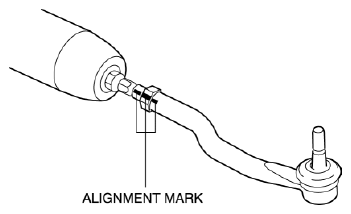

    Fig 1: Identifying Alignment Marks On Tie-Rod End
    G08143429
  2. Remove the tie-rod end.
