Outer Mirror Garnish Removal/Installation





OUTER MIRROR GARNISH REMOVAL/INSTALLATION

1. Remove the outer mirror glass from the outer mirror. Outer Mirror Glass Removal

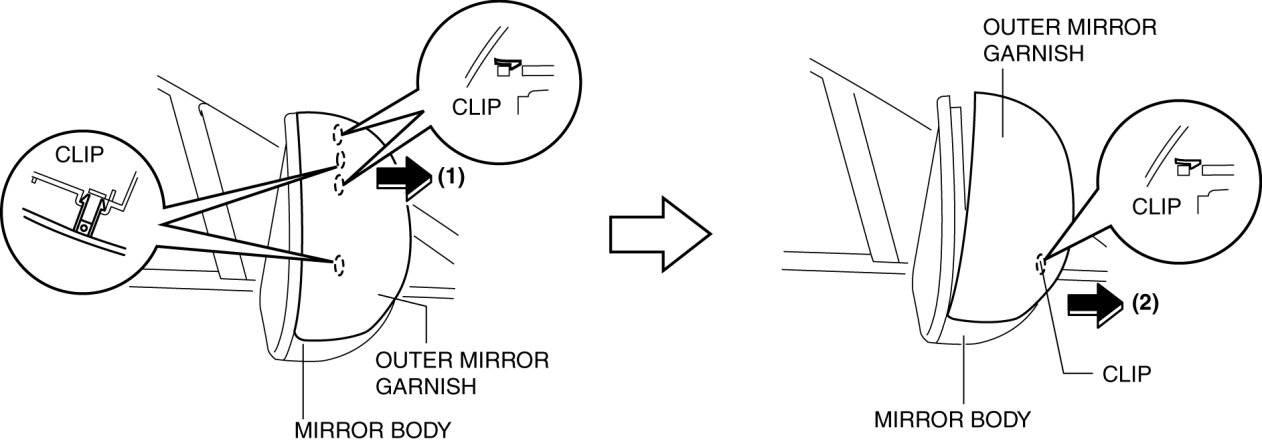

2. Grasp the upper side of the outer mirror garnish and remove it by pulling it in the direction of the arrow.






3. Install in the reverse order of removal.
