Forward Clutch Disassembly/Assembly: Notes

  1. Perform the preinspection before disassembly. (See FORWARD CLUTCH PREINSPECTION .)
  2. Disassemble in the order indicated in the table.
  3. Assemble in the reverse order of disassembly.

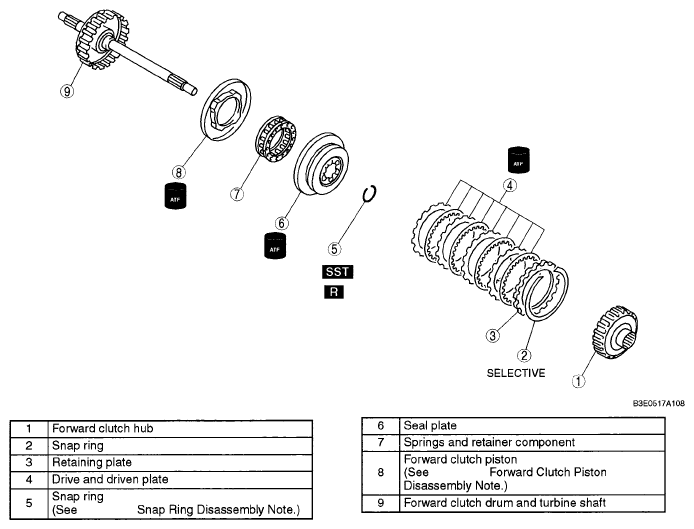

    Fig 1: Identifying Forward Clutch Components
    G05118677Courtesy of MAZDA MOTORS CORP.
