Wiper And Washer Switch Removal/Installation

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the column cover. See COLUMN COVER REMOVAL/INSTALLATION .
  3. Remove in the order indicated in the illustration.

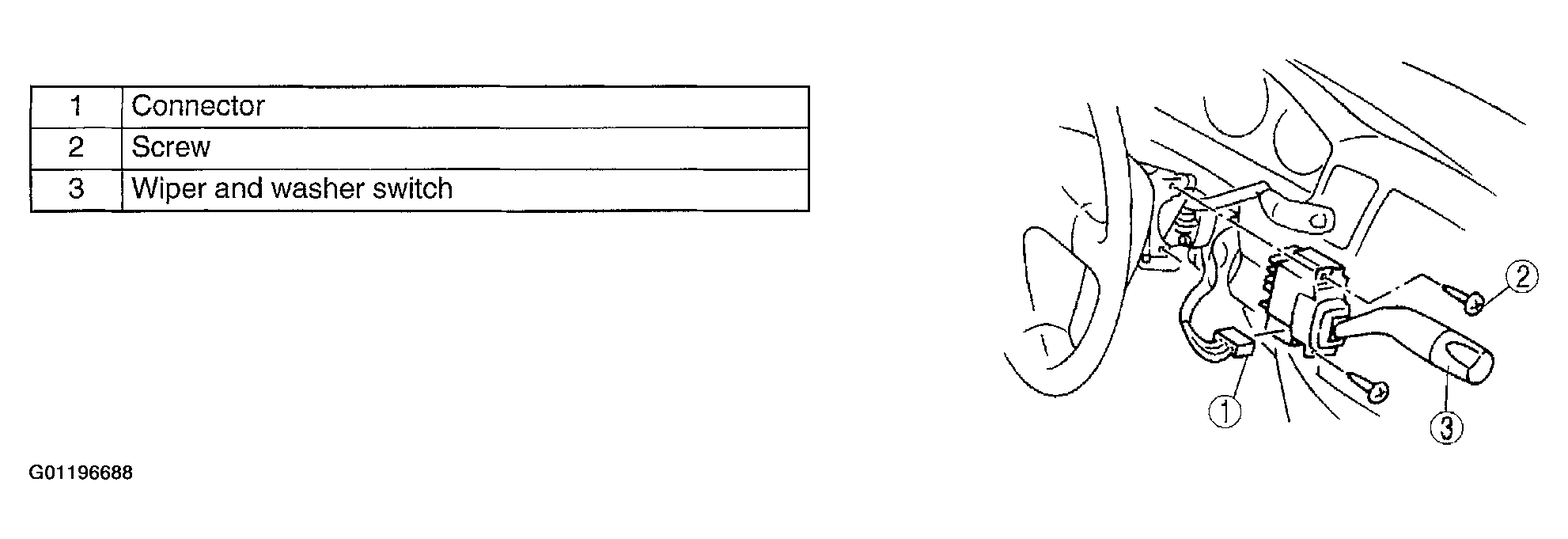

    Fig 1: Removing/Installing Wiper/Washer Switch
    G01196688Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
