Sub-Trunk Removal/Installation

  1. Slightly bend back the rear package tray lid.
  2. Pull the sub-trunk direction of the arrow shown in the figure while detaching the clips.

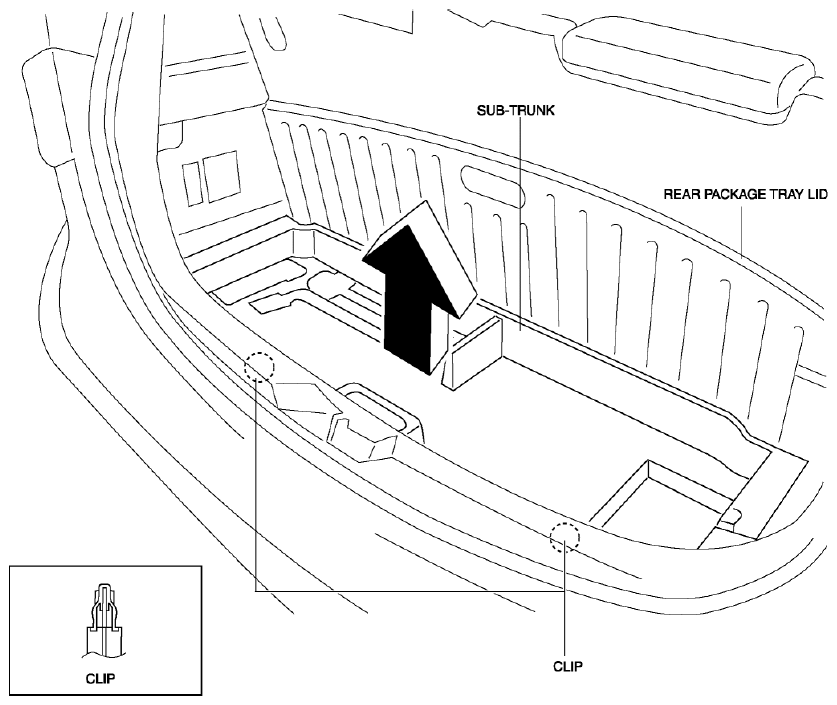

    Fig 1: Pulling Sub-Trunk
    G08153272
  3. Remove the sub-trunk.
  4. Install in the reverse order of removal.
