Liftgate Side Trim Removal/Installation

  1. Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
  2. Remove the fastener A.

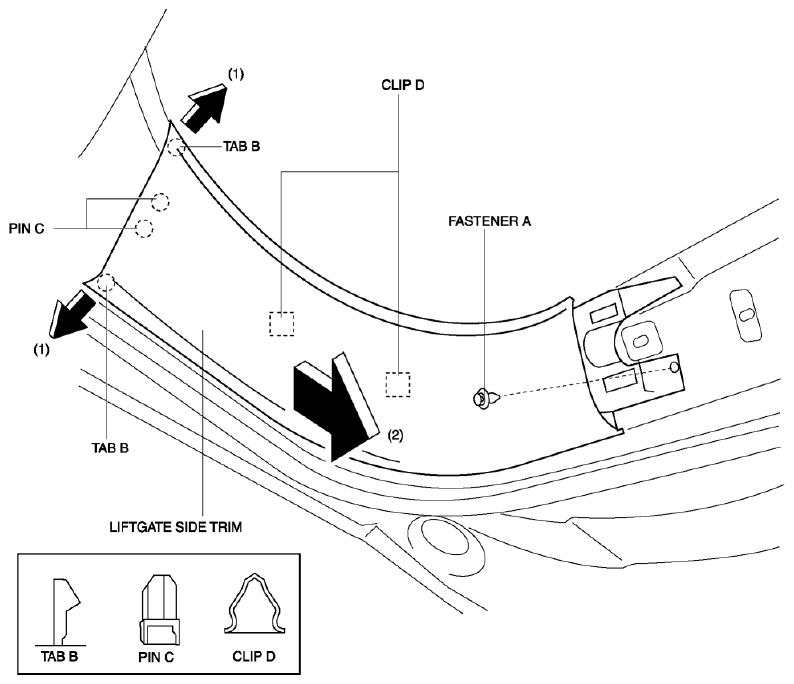

    Fig 1: Removing Liftgate Side Trim
    G08153274
  3. Detach tabs B while pulling the liftgate side trim in the direction of the arrow (1) shown in the figure, then detach pins C and clips D while pulling in the direction of the arrow (2).
  4. Remove the liftgate side trim.
  5. Install in the reverse order of removal.
