Front Side Trim Removal/Installation

  1. Remove the front scuff plate. (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
  2. Remove the fastener A.

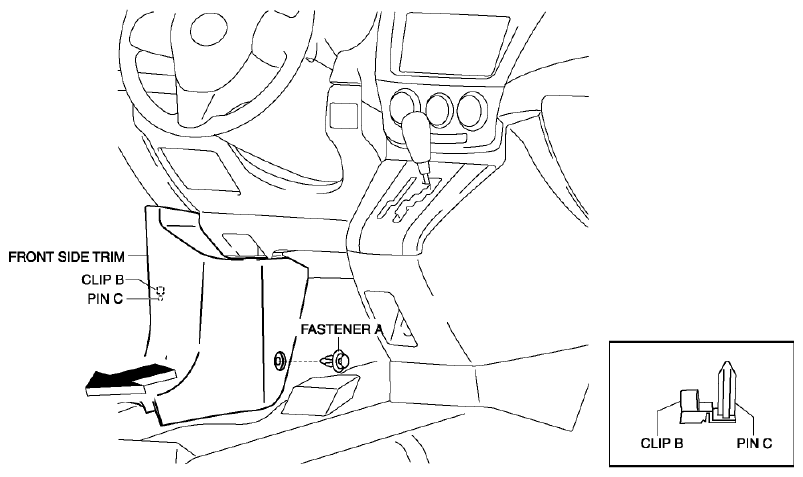

    Fig 1: Pulling Front Side Trim
    G08153264
  3. Pull the front side trim in the direction of the arrow and detach the clip B and pin C.
  4. Remove the front side trim.
  5. Install in the reverse order of removal.
