Console Panel Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the center console box. (See CENTER CONSOLE BOX REMOVAL/INSTALLATION .)
  3. Pull the console panel in the direction of the arrow (1), (2), (3) shown in the figure while detaching clips A.

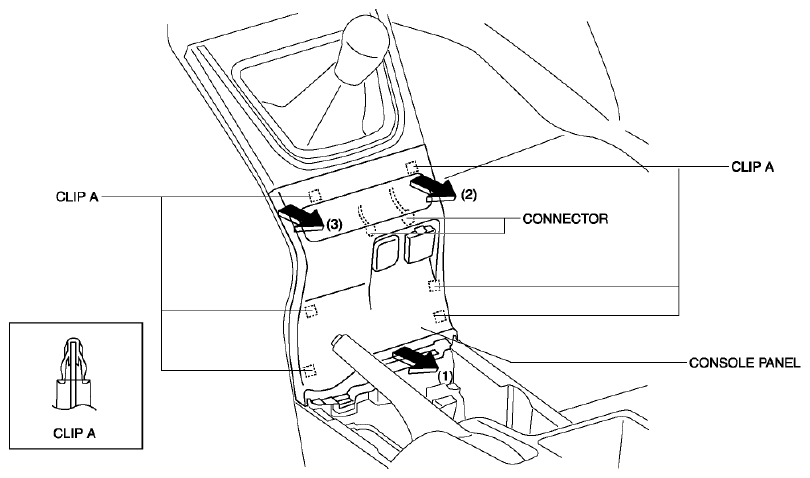

    Fig 1: Pulling Console Panel
    G08153263
  4. Disconnect the connector.
  5. Remove the console panel.
  6. Install in the reverse order of removal.
