Guide Disassembly Note

  1. Insert a hand to the back side of the sunroof frame, raise the decoration link lock and remove it.

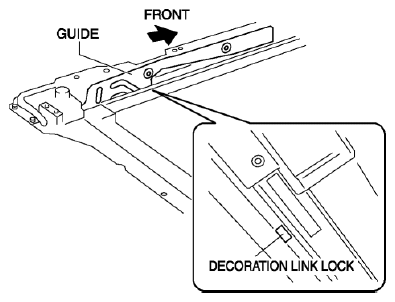

    Fig 1: Raising Decoration Link Lock
    G08153129
  2. Slide the guide to the rear of the sunroof frame, and remove the guide and decoration link as a single unit.
