Fog/Driving Lamp Switch: Testing and Inspection

FOG LIGHT SWITCH INSPECTION

1. Disconnect the negative battery cable.

2. Remove the column cover. Service and Repair

3. Remove the light switch. Service and Repair

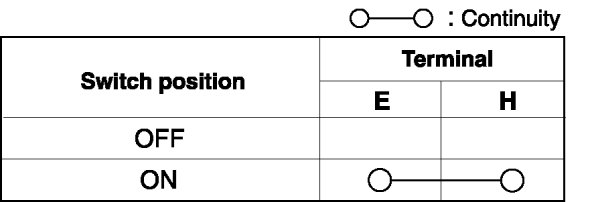

4. Verify that the continuity between the front fog light switch terminals is as indicated in the table.






- If not as indicated in the table, replace the light switch.
