Front Power Metal Oxide Semiconductor Field Effect Transistor (Power MOS FET) Removal/Installation

FRONT POWER METAL OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTOR (POWER MOS FET) REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER]

1. Disconnect the negative battery cable.

2. Remove the side wall (RH). Side Wall Removal/Installation

3. Remove the dashboard under cover. Dashboard Under Cover Removal/Installation

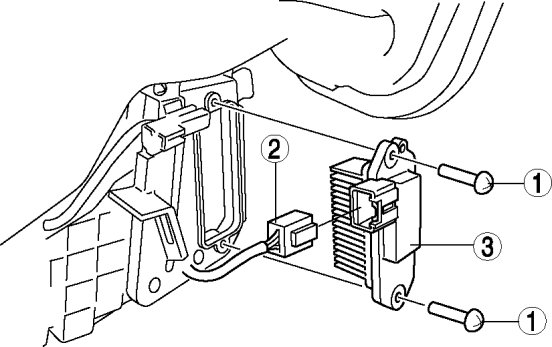

4. Remove in the order indicated in the table.










5. Install in the reverse order of removal.
