Front Blower Motor





FRONT BLOWER MOTOR INSPECTION [FULL-AUTO AIR CONDITIONER]

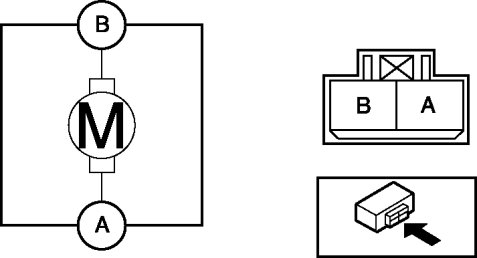

1. Connect battery positive voltage to blower motor terminal B, connect terminal A to ground, and then verify its operation.






- If there is any malfunction, replace the front blower motor.
