Engine Control System [MZR 2.0, MZR 2.5]
>>
Pcm Inspection
>>
Inspection Using An Oscilloscope (Reference)
>>
A/F sensor heater control
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
A/F sensor heater control

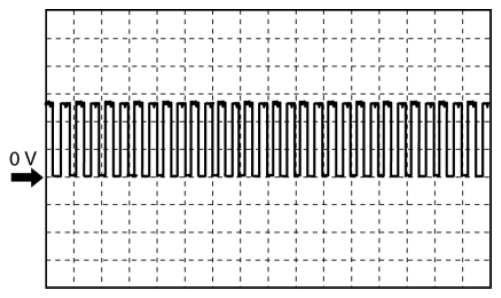

Fig 1: A/F Sensor Heater Control Waveform Graph
PCM terminals
2A(+)-body ground(-)
Oscilloscope setting
5 V/DIV (Y), 200 ms/DIV (X), DC range
Vehicle condition
Idle (immediately after starting the engine)
