CKP sensor signal

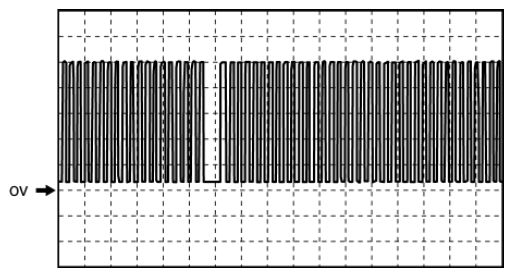

Fig 1: CKP Sensor Signal Waveform Graph
PCM terminals
2W (+)-body ground (-)
Oscilloscope setting
2 V/DIV (Y), 5 ms/DIV (X), DC range
Vehicle condition
Idle after warm up
