Fan control module signal

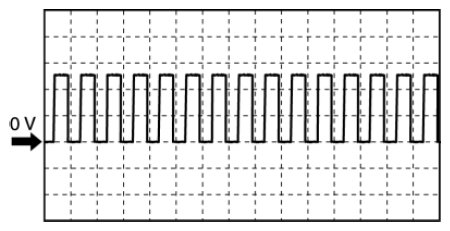

Fig 1: Fan Control Module Signal Waveform Graph
PCM terminals
1AE (+)-body ground (-)
Oscilloscope setting
5 V/DIV (Y), 5 ms/DIV (X), DC range
Vehicle condition
Idle after warm up
