Power Outer Mirror Switch Inspection

Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5] .) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI TURBO] .) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
Remove the following parts:
1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
2. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
3. Switch panel (See FRONT DOOR TRIM DISASSEMBLY/ASSEMBLY .)
Verify that the continuity between the power outer mirror switch terminals is as indicated in the table.
- If not as indicated in the table, replace the power outer mirror switch.

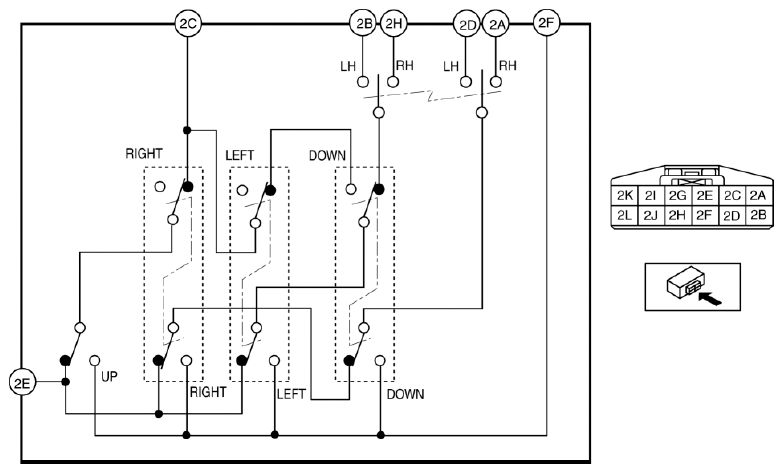

Fig 1: Checking Continuity Between Power Outer Mirror Switch Terminals

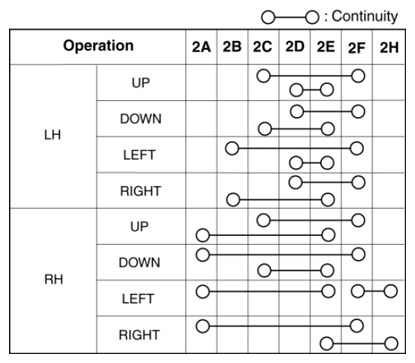

Fig 2: Power Outer Mirror Switch Terminals Continuity Chart
