Clutch Switch: Testing and Inspection

STARTER INTERLOCK SWITCH INSPECTION [MZR 2.0, MZR 2.5]

CAUTION:
1 Do not reuse the starter interlock switch if it is removed from the vehicle even once. Replace with a new starter interlock switch when installing.

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable. Removal and Replacement

3. Disconnect the starter interlock switch connector.

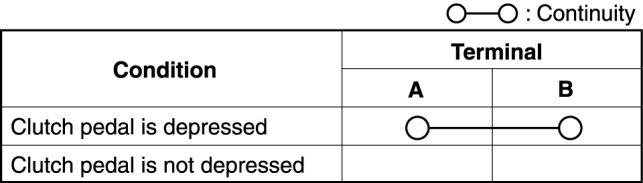

4. Verify that the continuity is as indicated in the table using a tester.











- If the continuity is not as indicated in the table, replace the starter interlock switch.
(See Clutch Pedal Removal/Installation [G35M-R] (5MTX).) (See Clutch Pedal Removal/Installation [G66M-R] (6MTX).)
